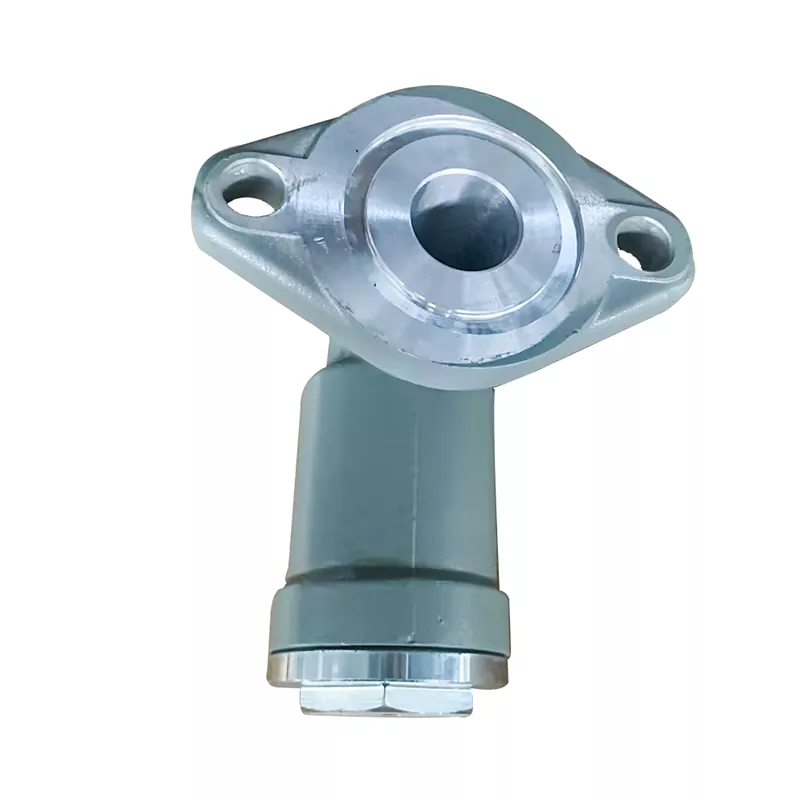

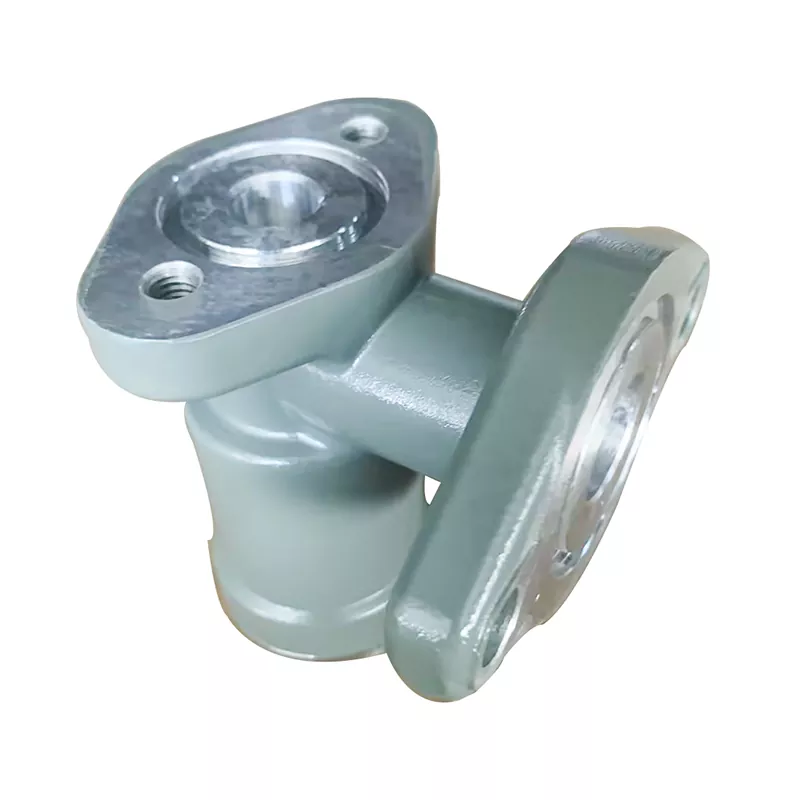

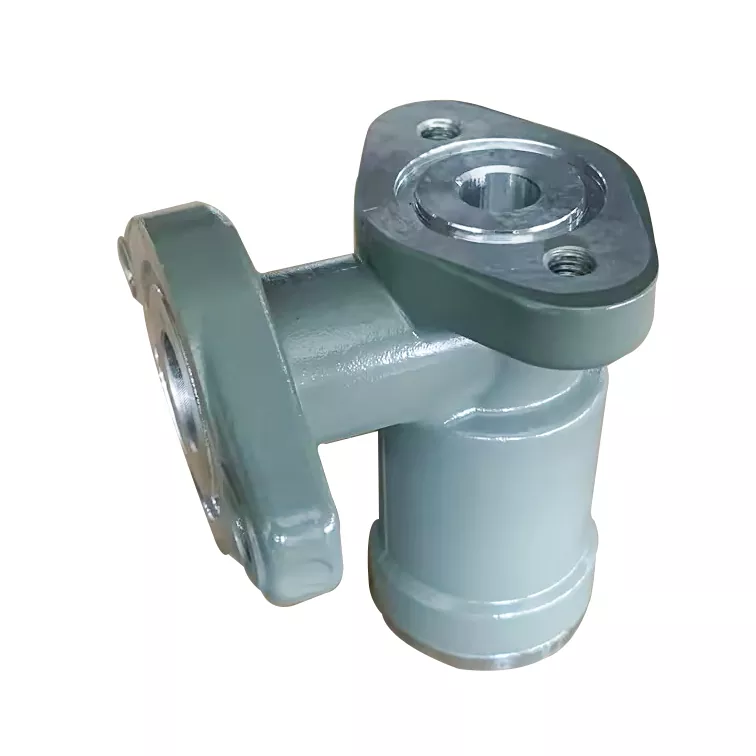

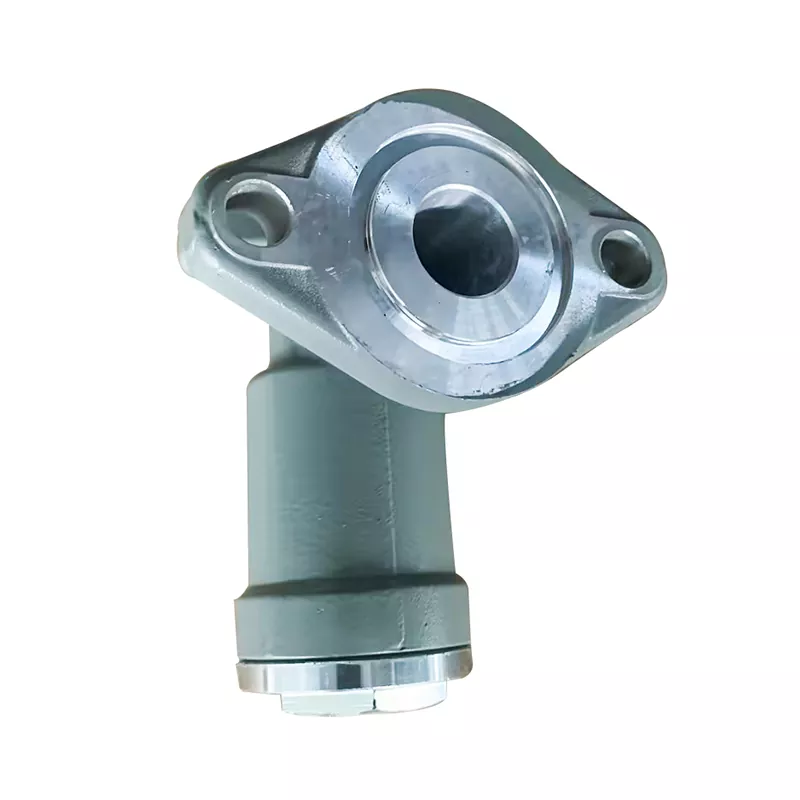

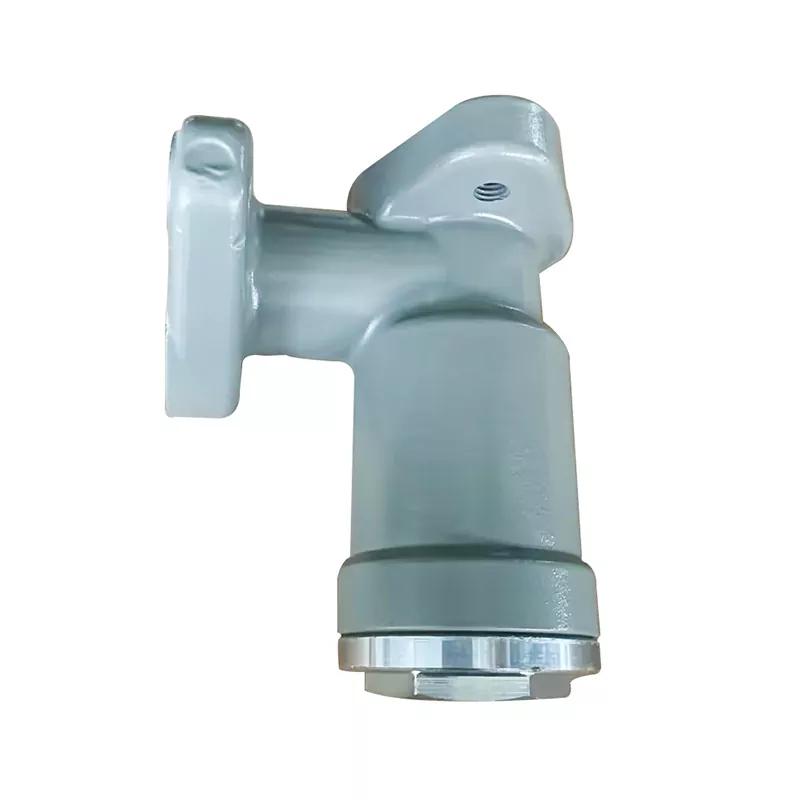

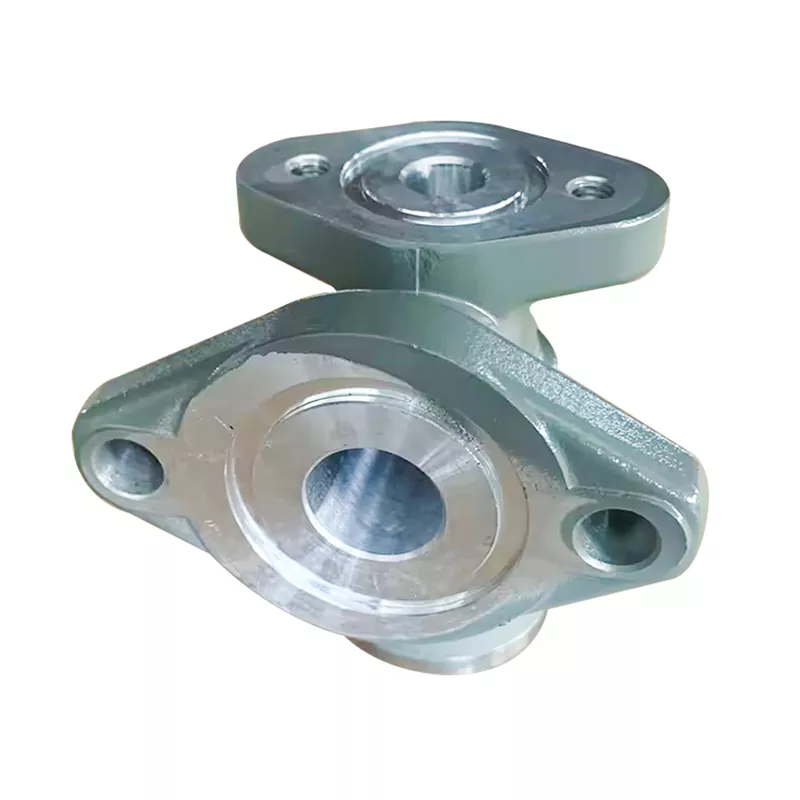

The LPG Dispenser Differential Pressure Valve is a high-precision pressure regulating valve specially designed for liquefied petroleum gas (LPG) systems. It can stabilize the control of gas pressure difference to ensure a safe and stable output of flow rate, and is suitable for industrial, commercial and mobile gas supply scenarios. This product meets the requirements of high-pressure conditions and has a compact structure, making it convenient for us to integrate and install.
|
Model |
CYF1 |
|
Working pressure |
1.8MPa |
|
Pressure difference |
0.3MPa |
|
Flow Rate |
5-50L/min |
|
package |
20pcs/carton |
|
Net weight |
10kg |
|
Gross weight |
12kg |
|
size |
475mm*230mm*240mm |
1. The LPG Dispenser Differential Pressure Valve has high-pressure durability and operates at a working pressure of 1.8 MPa, capable of withstanding harsh industrial environments.
2. The lpg differential valve has precise pressure differential control capability. The constant pressure difference is 0.3 MPa, ensuring the stability of the outlet pressure and avoiding fluctuations in flow rate.
3. The flow rate adaptability of lpg differential valve is wide, ranging from 5 to 50 liters per minute, which can flexibly meet the requirements of different equipment.
1. The pressure regulation system used in industrial LPG storage tank stations ensures the safety of the gas supply pipelines.
2.In commercial settings, such as in large-scale gas stoves used in restaurants, there is a need for high-flow gas supply to meet the requirements.
3.Pressure buffering device applied in the gas unloading station of LPG transport vehicles in mobile equipment.
